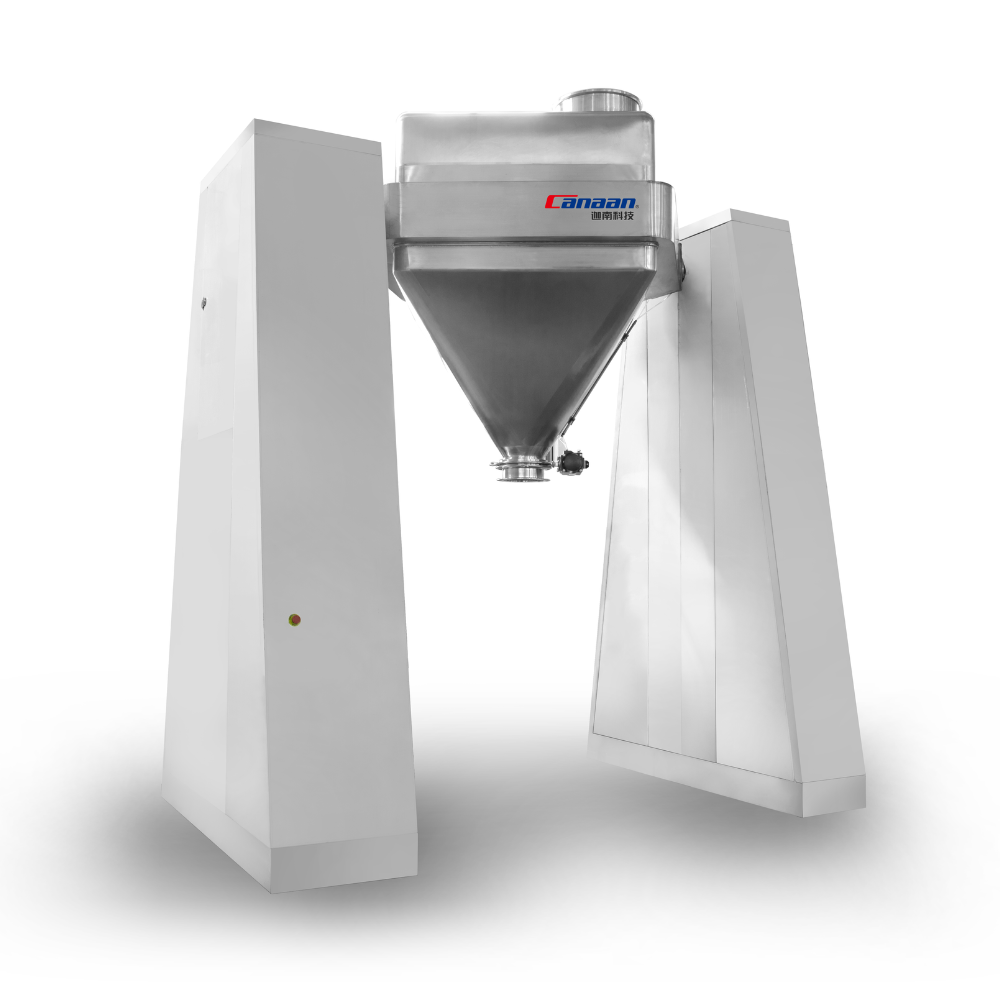

HGD Series Bin Blender

Working Principle

When working, manually pour the materials into the bin, lock the bin lid, and press the key “OK” on the touch screen to mix the materials according to the set time and speed. The angle between rotary body (mixing bin) and rotary axis is 30°. The materials in the bin is tumbled with the rotation of the bin and moves tangentially along the bin wall at the same time, thus achieving the best mixing effect. When the set mixing time is up, the bin automatically rotates to the vertical position (mixing finished), and prints out the process data.

Features

• Human/machine/product safety
• High effeciency, less mixing time
• Easy changing batch size
• Small footprint

Advantages

• It has a large mixed batch (over 10000L has been produced), reliable force and stable operation.
• The structure is reasonable, the performance is stable, the operation is convenient, the whole machine has no dead ends and no exposed screws.
• There is no dead angle on the inner surface of the mixing hopper, which is easy to clean and meets the requirements of GMP.
• Using PLC control, it can automatically complete mixing, positioning, recording and printing process parameters.
