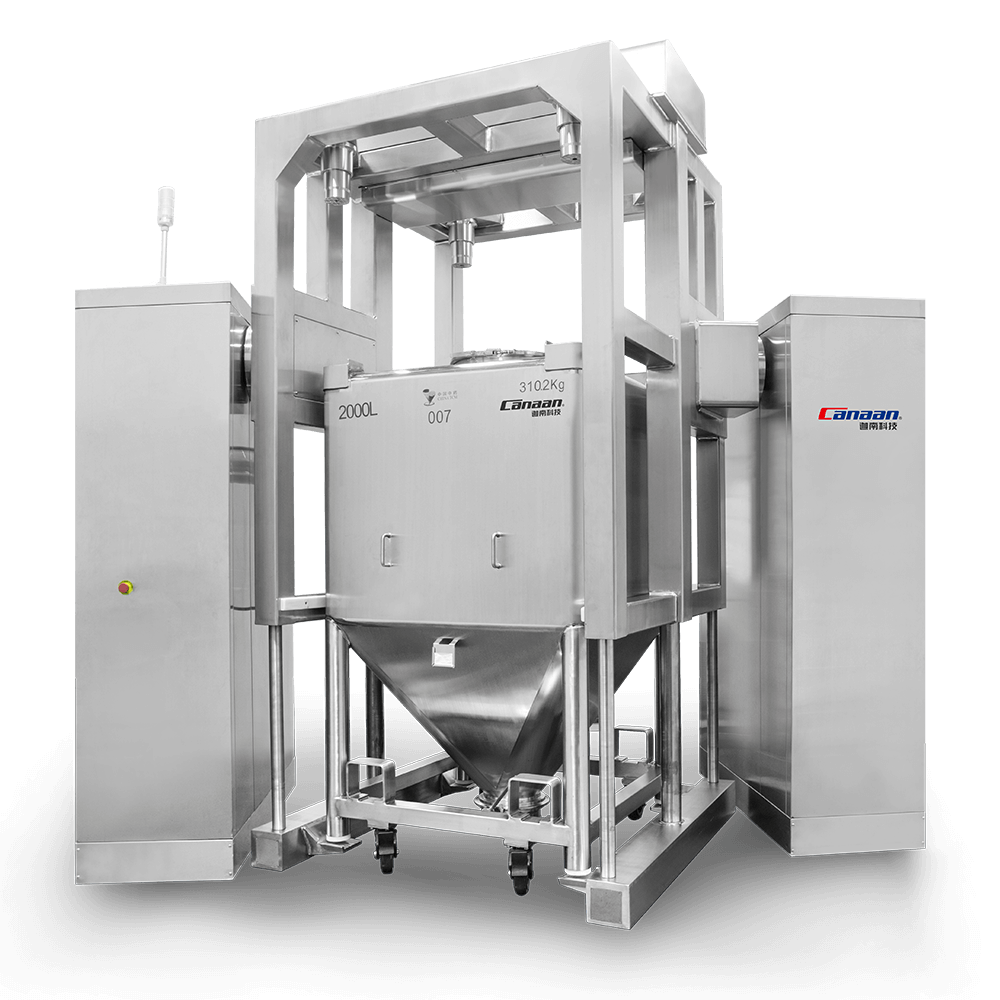

When working, push the mixing bin into the rotary body, and press the “OK” key on the touch screen to automatically lift the bin in place and clamp it. The pressure sensor drives the system to mix according to the set time and speed after the clamping signal is received; the angle between rotary body (mixing bin) and rotary axis is 30°, the materials (in the mixing bin) are tumbled with the rotation of rotary body and moves tangentially along the bin wall to achieve the best mixing effect; when the set mixing time is up, the rotary body stops vertically (mixing finished); lower the mixing bin, and print process data, then push the bin to next process.
| Equipment model | HZD400 | HZD600 | HZD800 | HZD1000 | HZD1200 | HZD1500 | HZD1800 | HZD2000 |
| Max. bin volume | 400 L | 600 L | 800 L | 1000 L | 1200 L | 1500 L | 1800 L | 2000 L |
| Max. net load (without bin) | 200 kg | 300 kg | 400 kg | 500 kg | 600 kg | 750 kg | 900 kg | 1000 kg |
| Loading coefficient | 0.5～0.8 | 0.5～0.8 | 0.5～0.8 | 0.5～0.8 | 0.5～0.8 | 0.5～0.8 | 0.5～0.8 | 0.5～0.8 |
| Working speed | 3～20 r/min | 3～20 r/min | 3～20 r/min | 3～15 r/min | 3～15 r/min | 3～15 r/min | 3～15 r/min | 3～15 r/min |
| Mixing motor power | 4 kW | 5.5 kW | 5.5 kW | 5.5 kW | 5.5 kW | 7.5 kW | 7.5 kW | 7.5 kW |
| Lifting motor power | 1.5 kW | 1.5 kW | 1.5 kW | 3 kW | 3 kW | 3 kW | 4 kW | 4 kW |
| Weight | 1800 kg | 2500 kg | 2800 kg | 3000 kg | 3200 kg | 3600 kg | 4000 kg | 4200 kg |
