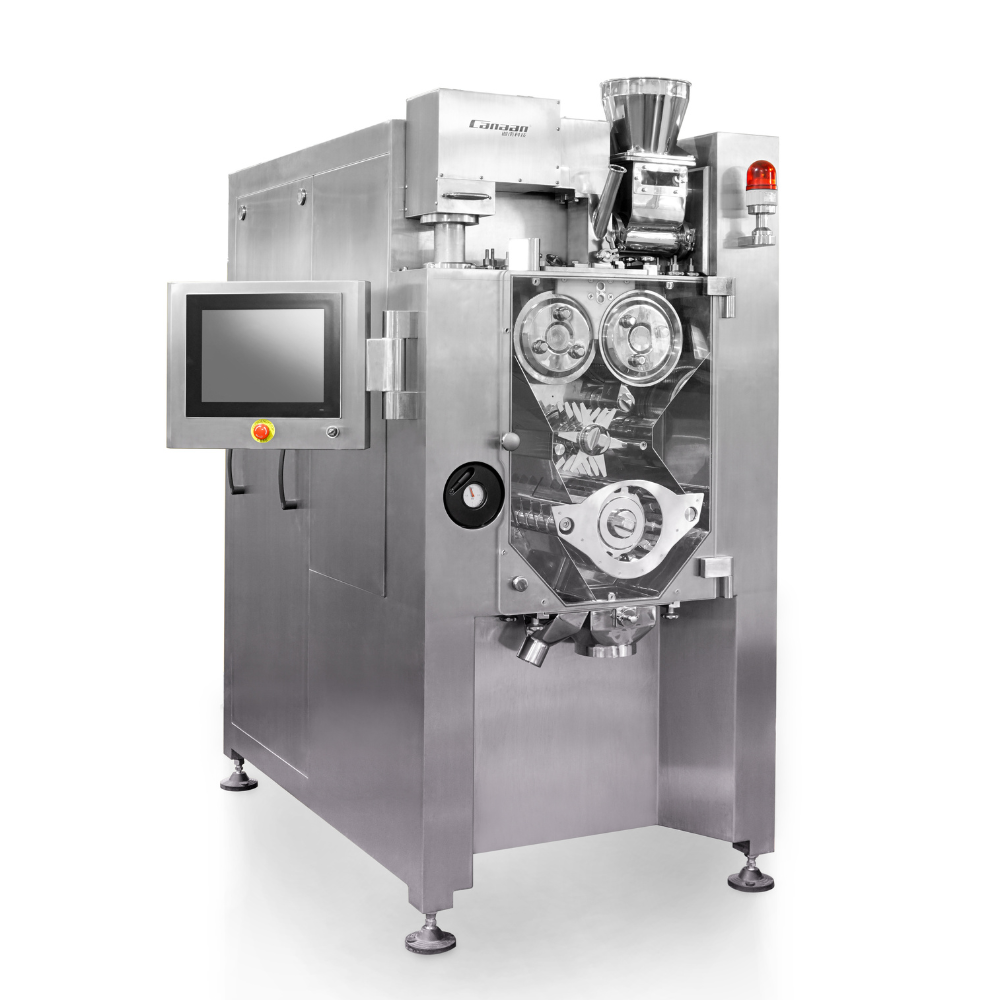

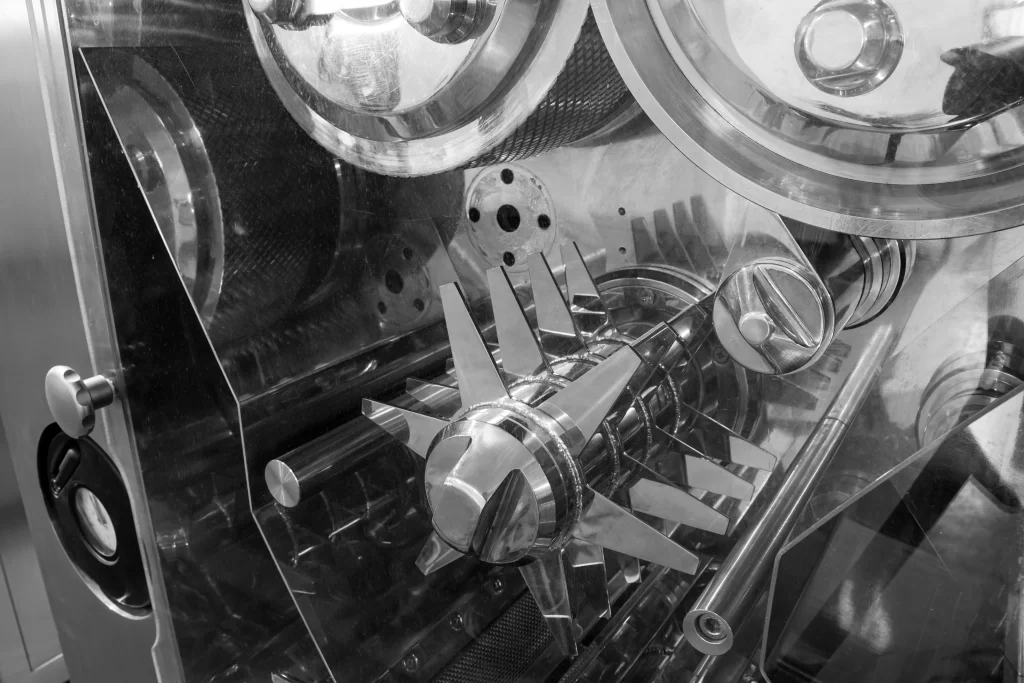

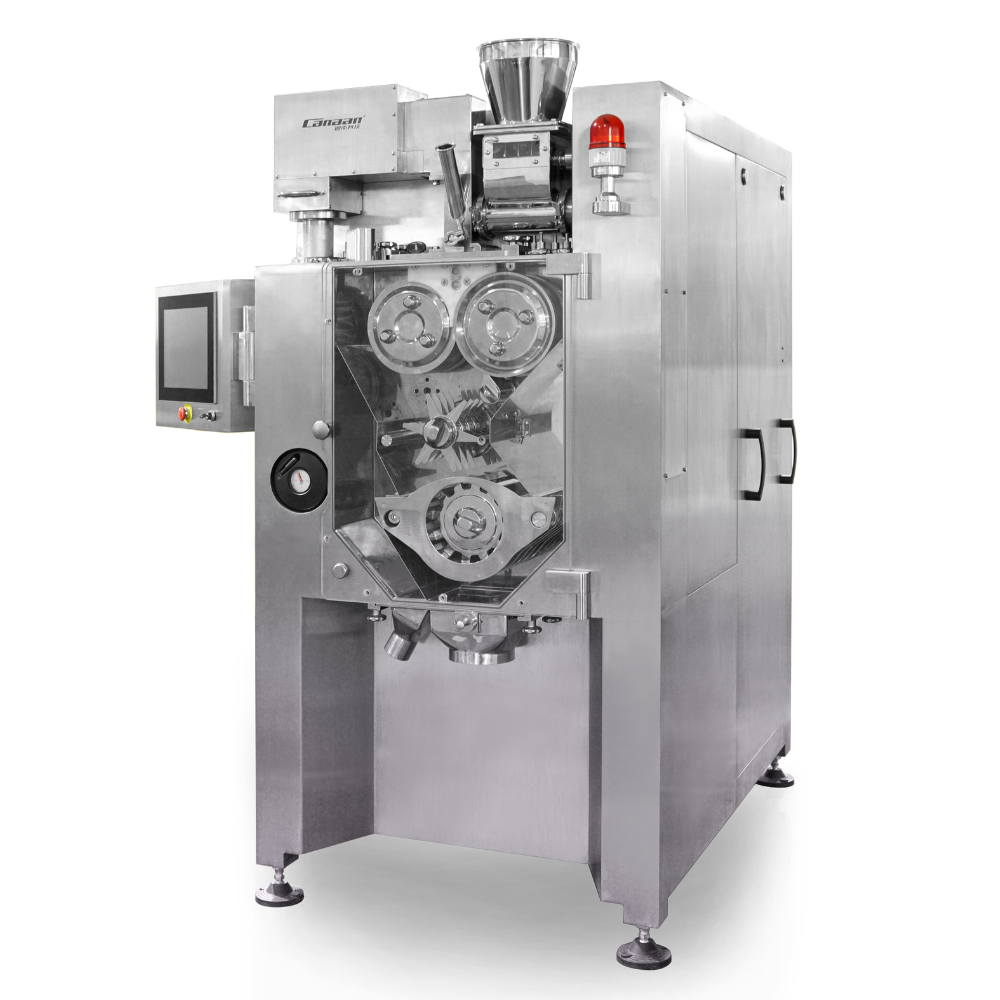

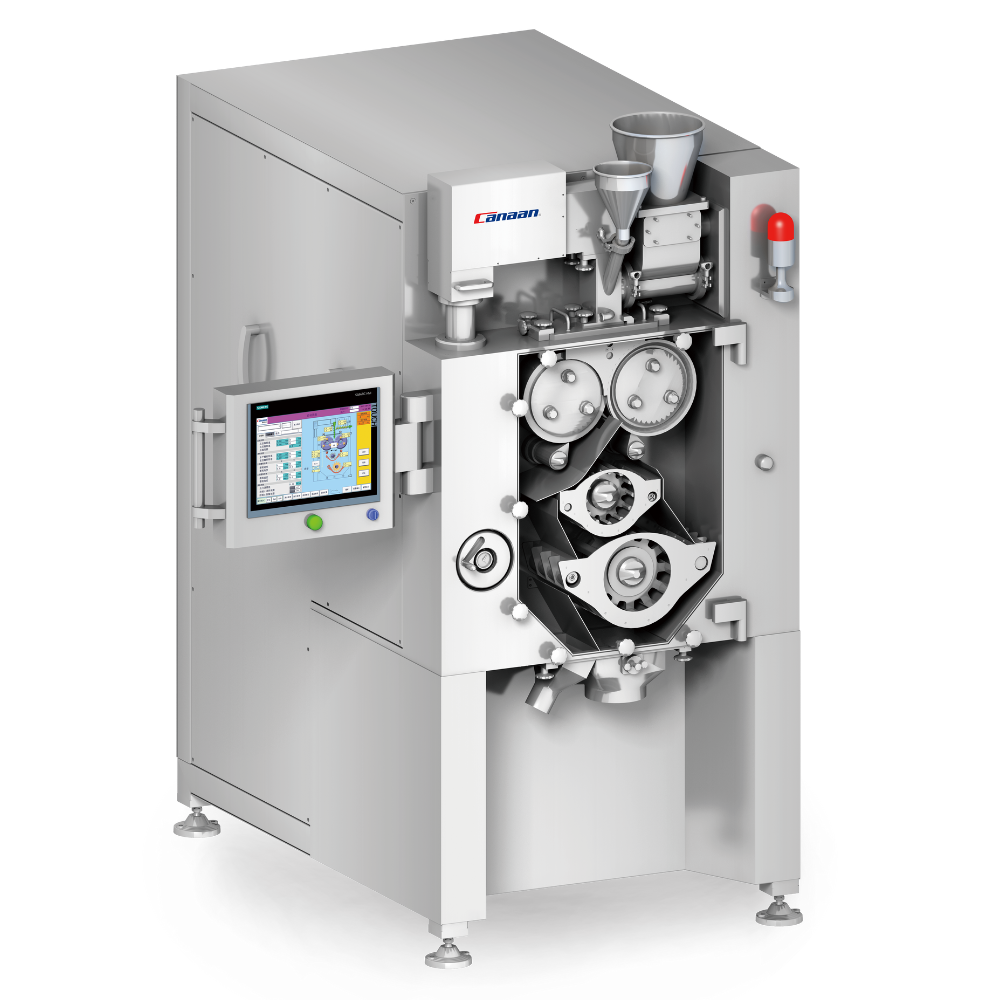

The Hercules-85 roller compactor provides a two-stage granulation system for high quality granulates. With this soft mode granulation we can guarantee a minimal amount of undersized particles.
The Hercules-85 roller compactor uses IPC(Industrial Personal Computer)which is easy to operate and has a friendlier HMI.
With the synchronous operation mode of horizontal and vertical feeding, the unique operation control can ensure that the material will not be blocked during the process of conveying from horizontal metering screw to vertical metering screw.
The two-stage granulation system ensures high-quality granulates with minimal undersized particles, improving overall product quality.
It uses an Industrial Personal Computer (IPC) with an easy-to-operate and user-friendly HMI (Human-Machine Interface) for automatic control.
Its synchronous horizontal and vertical feeding system ensures smooth material flow, preventing blockages during the conveying process.
| Machine Dimension: L×W×H（mm） | 1600×1100×2100 | Pre granulator diameter | 160mm |
| Machine Weight | 1600Kg | Fine granulator diameter | 230mm |
| Roller Diameter | 250mm | Maximal capacity | 400Kg/h |
| Roller Width | 85mm | Construction metal | AISI316L |
| Roller Rotation Speed | 1-30rpm | Supply voltage | 220V/50Hz |
| Press Force | 1-20KN/cm | Power | 25KW |
| Variable Press Gap | 0.1-7.0mm | / | / |
